Tractel

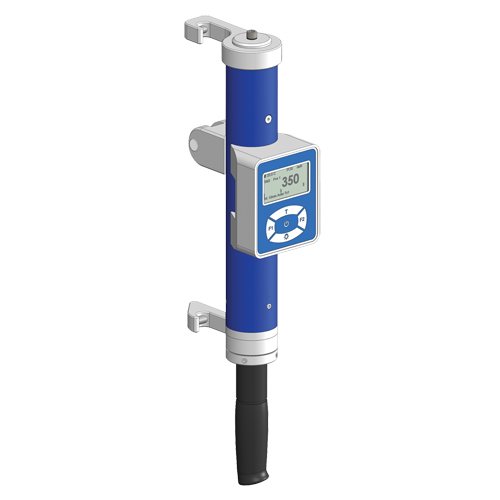

Dynarope Small Capacity Tensiometer HF 37/1/LPT

Model: LV290

Mfr. No.: 0190008

  • Dynarope Small Capacity Tensiometer HF 37/1/LPT Les Fournitures Industrielles Méga

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Working Load Limit Range

200 lbs - 3000 lbs. (100 kg - 1500 kg.)

Wire Rope Diameter

1/2"

Increments

2 lbs. (1 kg)

Min. Wire Rope Diameter

3/16"

  • Designed for measuring forces in pretension wire ropes that cannot be dismantled and for which tension must be known or confirmed
  • Fits directly onto the tensioned wire rope and is simply held in position by turning a handle
  • Device is comprised of a load cell with strain gauges and a display driven by a microprocessor
  • Display of the force measured by the load cell takes into account parameters you enter such as the diameter, composition and structure of the rope
  • Accuracy:<1% of nominal capacity
  • Operating temperature from -4 to 140°F (-20 to 60°C)
  • Displays mass or force
  • Protection: IP 65 (NEMA 4)
  • FOB Tractel, Montreal, Qc
