Topring

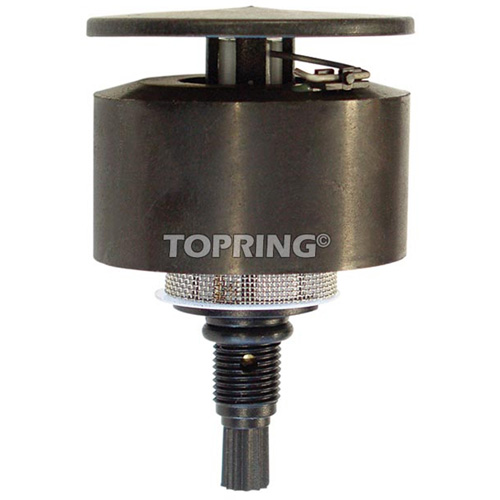

Filter/Regulator & Coalescing Filter - Internal Auto-Drain

Model: TG377

Mfr. No.: 50.006

  • Filter/Regulator & Coalescing Filter - Internal Auto-Drain Les Fournitures Industrielles Méga

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Connection Size

1/2" NPT

Max. PSI

250 PSI

Drain Type

Automatic

  • Specifications:; Port Size: 1/4" (F) NPT - 3/8" (F) NPT; Maximum air flow at 100 PSI: 1/4": 15 SCFM* 3/8": 20 SCFM*; Maximum Pressure Range: 250 PSI Zinc Bowl; Reduced Pressure Range: 0 to 125 PSI; Temperature Range: 40¦F to 150¦F (4.4¦C to 65.6¦C); Filtration: Standard: 40 Microns Option: 5 Microns; Bowl Material: Zinc with Sight Glass; Bowl Capacity: F/R 4 oz. - Coalescing Filter 8 oz.; Drain: Manual (For internal Auto Drain, see Accessories); Regulator Construction: Glass-filled Acetal Spring Cage. ; Plastic Knob. Relieving Type.; Diaphragm Operated. ; Weight: Zinc Bowl: 3.8 lbs.; Pressure Gauge Port Size: 1/4" (F) NPT; Recommended Oil: TG366
  • Features recyclable, biodegradable, and/or recycled content
