Electronic Specialties

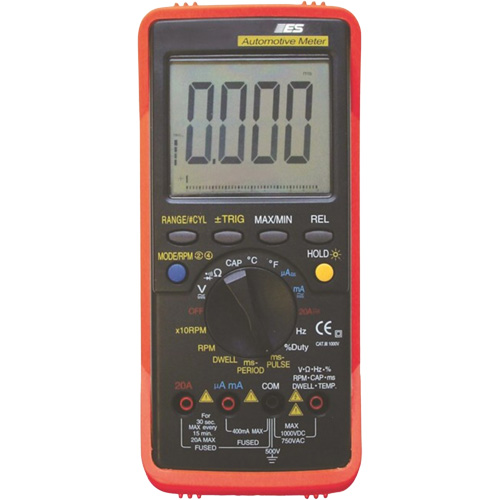

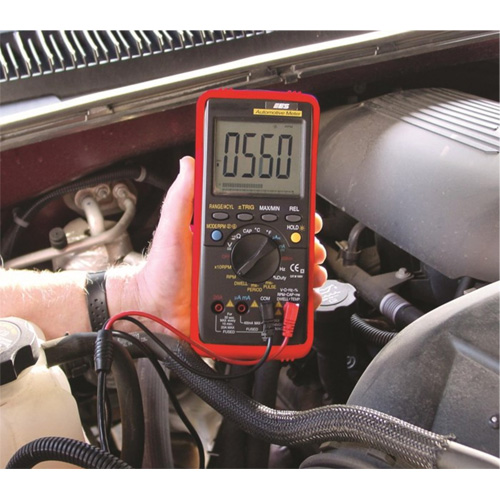

Pro Model Automotive Digital Multimeter W/PC Interface

Model: FLV644

Mfr. No.: 595

  • Pro Model Automotive Digital Multimeter W/PC Interface Les Fournitures Industrielles Méga

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

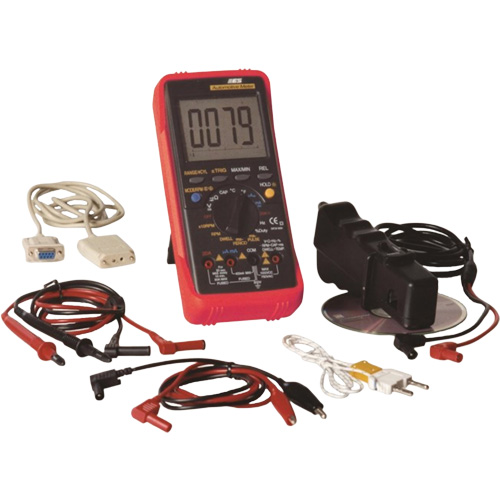

Includes

  • (2) Test Leads Set
  • (1) RPM Pick-Up
  • (1) Temperature Probe
  • (1) Software CD
  • (1) USB Interface Cable
  • (1) Protective Holster
  • (1) 9V Battery
  • (1) Instruction Manual
  • (1) Hard Storage Case

DC Volts

0-400mV, 4V, 40V, 400V, 1000V

AC Volts

0-400mV, 4V, 40V, 400V, 750V

DC Amps

0-400uA, 4mA, 40mA, 400mA, 4A, 20A

AC Amps

0-400uA, 4mA, 40mA, 400mA, 4A, 20A

Ohms

0-400, 4K, 40K, 400K, 4M, 40M

Capacitance

0-40nF, 400nF, 4uF, 40uF, 100uF

RPM 4

0-4,000 RPM, 12,000 RPM x 10

RPM2/DIS

0-4,000 RPM, 6,000 RPM x 10

Country Of Origin

China

  • Equipped with the latest testing capabilities, including Milliseconds Pulse Width, for measuring the on-time of fuel injectors
  • Features a huge LCD display with a bar graph for easy viewing
  • This meter can be interfaced with your PC or Notebook computer for enhanced diagnostics and data presentation
  • The software and computer interface cable are included for free
  • Inductive RPM pick-up features a five-position, adjustable sensitivity switch
  • CATIII 1000 V approved and safety rated
  • 58 Test ranges, 16 test functions
  • mS Pulse Width for furl Injector ON-TIME
  • Max/Min function captures high/low readings for better diagnostic capability
  • 4 Step adjustable trigger levels
  • USB Interface cable
  • Desirable 20 Amp fuse test range
  • Special access panels for fuses
  • Hard storage case for safe storage
  • Auto power-off, saves batteries
  • Safe for use on hybrids and EV's
