Electronic Specialties

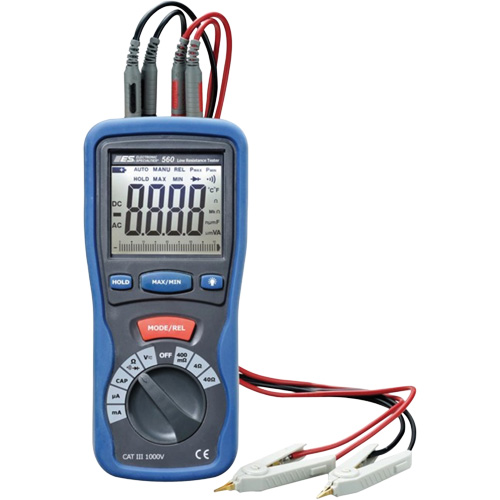

Milliohm Meter for Hybrid & EV Stator Windings

Model: FLW026

Mfr. No.: 560

  • Milliohm Meter for Hybrid & EV Stator Windings Les Fournitures Industrielles Méga

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

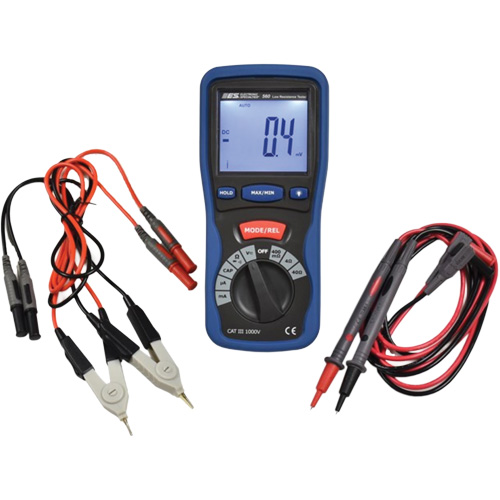

Includes

  • (6) AA Batteries
  • (1) Kelvin Test Leads
  • (1) Standard Test Leads
  • (1) Blow Mold Case

Low Resistance Range

0-40 Ohms

Resistance Range

0-40 MegOhms

Voltage DC

0-1000V

Voltage AC

0-750V

AC/DC Current

0-400mA

Capacitance

0-40mF

Continuity Test

Audible Beep ≤40 Ohm

Dimensions

200mm H x 92mm W x 50mm D

Country Of Origin

China

  • Checks Hybrid and EV stator windings for inconsistent or out of range resistance which leads to drivability problems
  • Using a milliohm meter is a critical diagnostic procedure for ensuring the integrity, efficiency, and reliability of the electric motor's winding
  • In three phase stators, all phases should exhibit nearly identical resistance values
  • This is one of the higher failure rates in electric motors and can help you diagnose it
  • Reads very low ohms accurately, using the supplied Kelvin test leads
  • Low Ohm resolution is 0.1 milliohm, or .00001 Ohm
  • Unit is also full CATIII DVOM with Volts, Ohms, Capacitance, and Milliamps capabilities with Min/Max
  • Measures Diodes and has Continuity beep
  • Meets IEC10101, CATIIII 1000V
  • Large display with white LED backlighting
  • Min/Max capture of high/low readings
  • Over range indication
