Denios

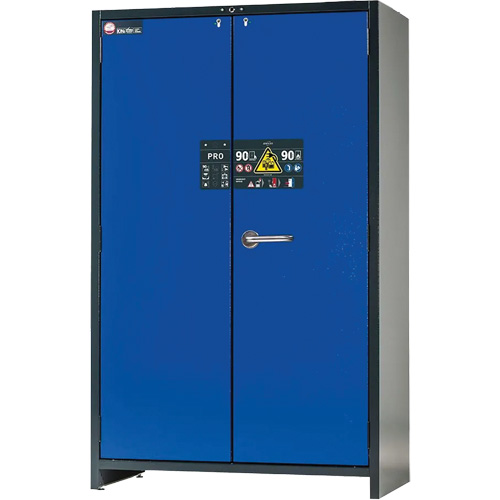

Lithium-ion Storage Cabinet with Charging & 90-Minute Fire Resistance

Model: SHR907

Mfr. No.: M31-8311

  • Lithium-ion Storage Cabinet with Charging & 90-Minute Fire Resistance Les Fournitures Industrielles Méga

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Includes

  • (2) Power Strips with (10) Sockets Each
  • (1) Bottom Collecting Sump
  • (1) Smoke Detector

Colour

Blue/Grey

No. Of Doors

2

No. Of Shelves

3

Door Type

Self-Closing

Width

24"

Depth

47"

Height

77"

Application

Lithium Batteries, Lithium-ion Battery

Outlet Type

120V 15A (Standard Three-Prong)

Energy Containment Rating

2.1 kWh per Shelf, 10.5 kWh per Cabinet

Fire Rating

90 min.

Material

Sheet Steel

Weight

1035 lbs.

Internal Dimensions

41" L x 20" W x 64" H

Country Of Origin

Germany

  • For charging and storage of undamaged lithium-Ion batteries
  • All-round protection: 90 min fire protection from the outside in and inside out
  • Propagation-tested, insulated shelves designed to slow fire propagation, which limits flame propagation across storage levels while supporting efficient waste heat

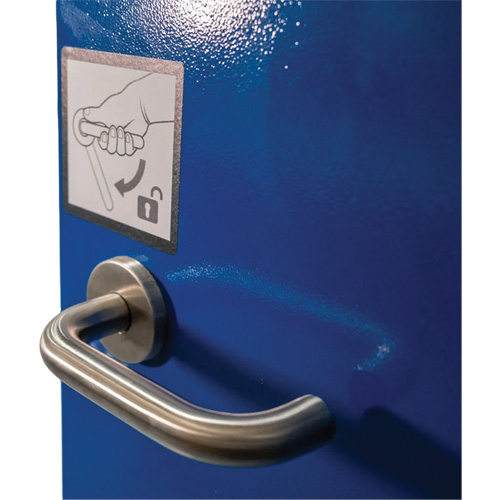

  • With permanently self-closing doors and quality oil-damped door closer
  • Doors can be locked with a profile cylinder (closing system compatible) and lock indicator (red/green)
  • Accessible underneath, allowing for easy moving and quick rapid evacuation in an emergency
  • With adjustable feet to be used on uneven floor surfaces
  • Extremely robust construction with scratch -proof paints
  • Recommended that the cabinets are sited at ground floor-level so that evacuation can take place quickly in the event of an incident
  • The quantity of batteries should match the quantity of battery units and chargers, collectively covering 60% of the grid shelf space
  • Type-tested fire resistance of 90 minutes (type 90) from outside to inside in accordance with DIN EN 14470-1, fire resistance of 90 minutes from inside to outside in accordance with the DIN EN 1363-1 standard
  • Cabinets with a similar fire-resistant construction have been tested to FM/UL/EN standards for flammable liquid storage
